Prescad industrial filters

Prescad Engineering is a team in continuous development, formed by high-qualified personnel with long experience in filtration solutions and process equipment, especially for industrial applications: oil & gas, energy generation, water treatment, among other sectors.

Filtration and protection for installations and equipment. Y-type, T-type, basket and temporary strainers, etc., simple or duplex configuration. Manufactured in carbon steel, stainless steel and special alloys. Filtration from 50 micron with pressure ratings up to PN400/2500#.

Basket-type strainers, in cast, forged or fabricated constructions, designed for solid particles retention in liquids and gases, suitable for all kind of applications as a protection for main equipment (pumps, valves, boilers, etc) or filtration in industrial processes. Horizontal installation. Quick-opening cover for an easy cleaning and maintenance of the screen mesh.

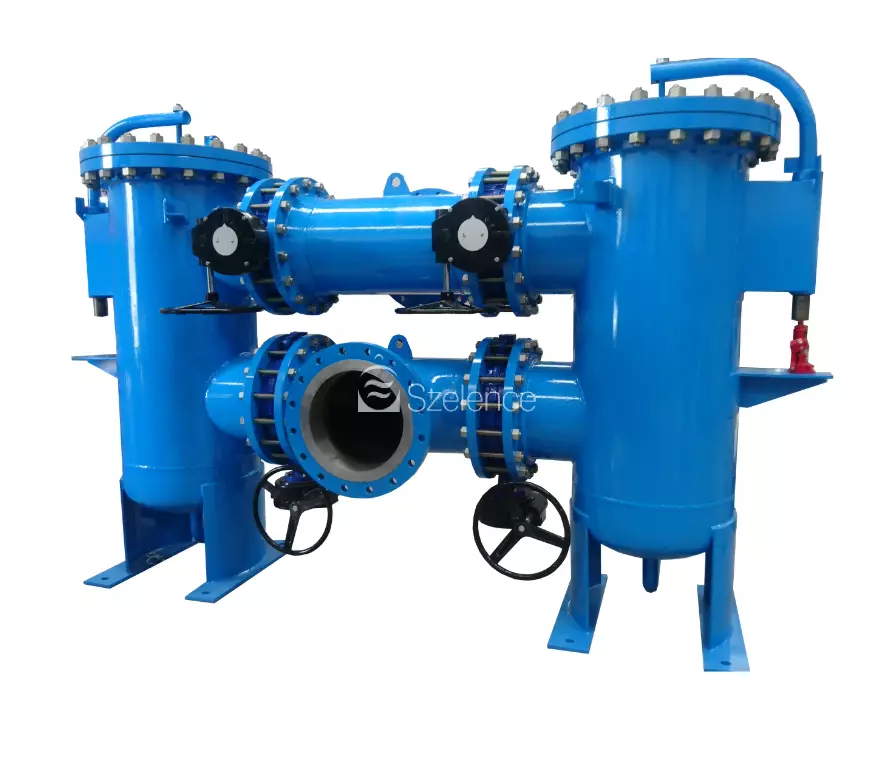

Double-body basket strainers, with alternative operation system to keep working non-stop when cleaning the filter. Easily removable covers to facilitate the screen cleaning. Larger models are available with a self-supporting skid. T and Y type strainers, and temporary strainers are also available in the PresFlow lineup.

Cartridge-type filters in aluminium, carbon steel and stainless steel. Filtration grade from 4 micron with pressure ratings up to 100 bar.
Cartridge type filter specially designed for solid particle retention applications in fuel and lubricating oil lines. Indicated for all types of industrial applications.

Cartridge-type filters in aluminium or stainless steel, designed for solid and liquid particles retention in gases at high pressure installations. Several media filter elements available to fit different process requirements. Filtration range from 1 micron, with pressure ratings up to 400 bar. Cyclone separators are also available.

Cartridge-type or bag- type filters for food industry. Typical applications include steam, water, wine, beverages, reagents, etc. Manufactured in stainless steel, with filtration grade from 1 micron and pressure ratings up to 40 bar. Filter elements with FDA approval available.

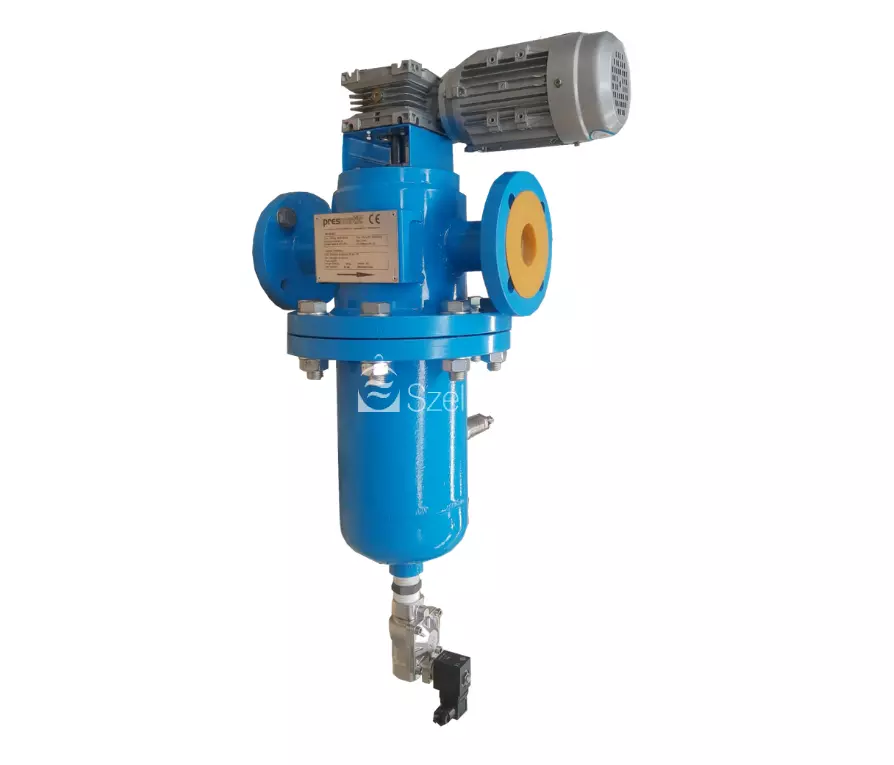

Self-cleaning strainers with manual or  motorized operation system, for any kind of application and fluid. Scraper cleaning system or backwashing system.
