About ITT Bornemann



ITT Bornemann develops, produces and sells customized pumps for worldwide applications in the market segments Energy, Marine, Offshore, Petrochemie, Chemical Industry, Food and Pharmacy. Besides pure pump business Bornemann evolves increasingly to a supplier of pumps and systems.

Twin Screw Working Principle



Bornemann Twin-Screw Pumps are self-priming, double ended positive displacement pumps with external timing gears and bearings. Manufactured in over 80 sizes, their design provides complete axial balancing of the rotating elements and eliminates all metal-to-metal contact within the pump.

Advantages of Bornemann twin srew pumps

  • Good pumping performance even with non-lubricating and corrosive and contaminated fluids
  • Can handle virtually any non-homogeneous fluid, regardless of viscosity, lubricity or abrasiveness
  • Self-priming
  • Low noise and pulsations
  • Designed to allow for reverse flow by simply changing the shaft direction
  • Corrosion and abrasion resistant – long life with minimum maintenance

Scopes of application

  • Chemical, petrochemical
  • Oil upstream and midstream
  • Oil refinery
  • Nuclear technology
  • Food & pharma

Bornemann twin screw pump types

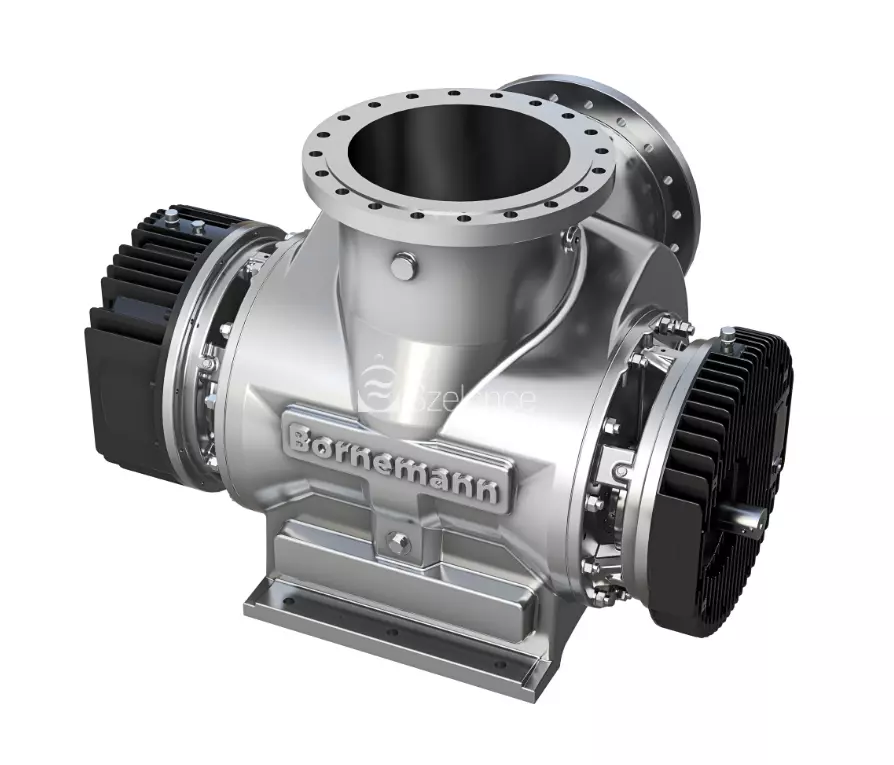

HC / HCi

Due to unique design of separately manufactured shafts and screws, many different material combinations are available, thus allowing for optimum combinations for specific applications. Up to 6000 m3/h, 16 bar, 120°C.

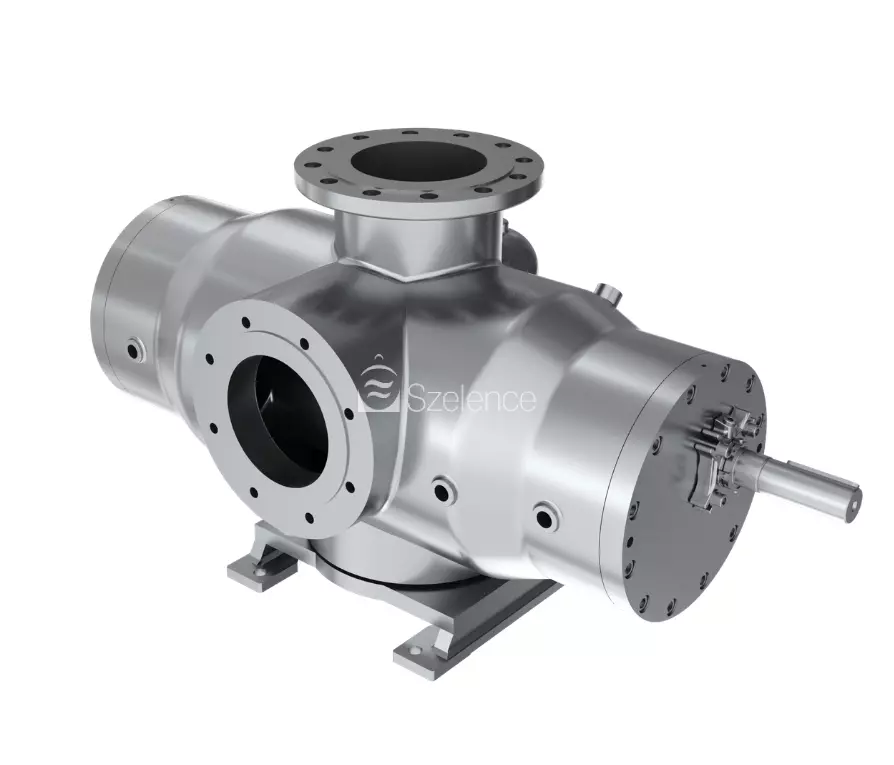

SLW

The SLW is working with both, external and internal bearings. It is specifically designed to serve the growing demands of hermetically sealed pumps as well as less rotating shaft seals compared to conventional Twin Screw Pumps.

SLI

The pumped fluid flows through the screws in an axial direction. Therefore, the pump imparts very low shear and little pulsation to viscous and shear-sensitive products. For this reason, SLI pumps are well suited for fluids with high or low viscosity, with lubricating or non-lubricating properties, and fluids containing some solid.

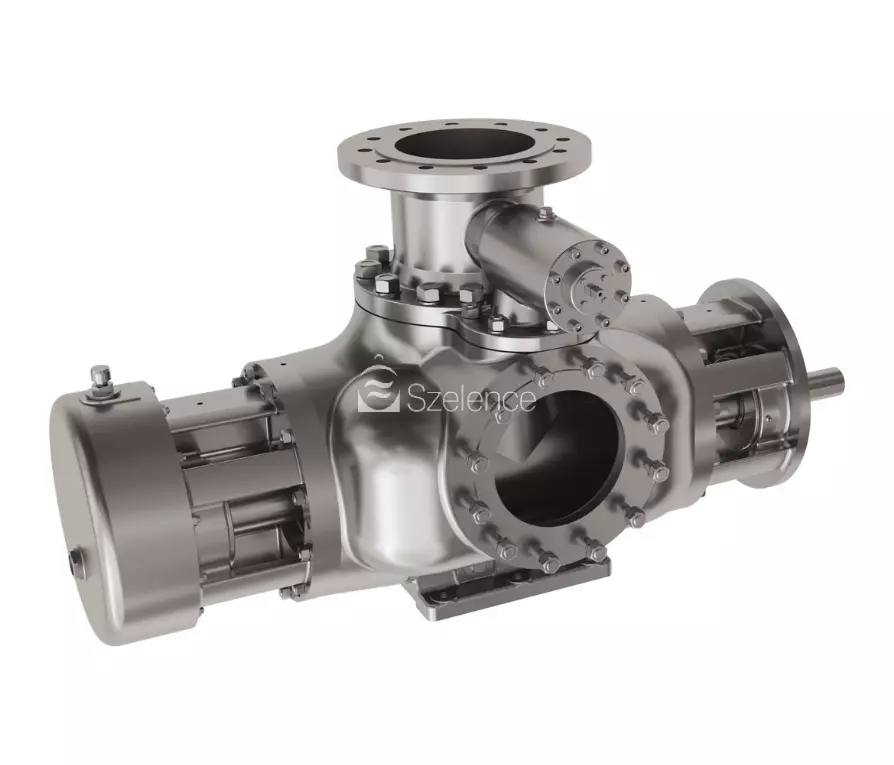

W/V

Self-priming rotary displacement pumps in a compact range with external bearings without touching medium. For aggressive media also.

Multiphase pumps

MPC, MSL, and MW types are specially designed for two-phase (liquid+gas) media in crude oil production applications. Extremely high flows (up to 8000 m3/h) are achievable, while dry running is also allowable for up to 30 minutes.
